Alloy Steel

• Application
• Other, Industrial tool making, dies, punches, blades, cutters, automotive and aerospace components

• Coating Type
• Without/As required

• Color
• Metallic Silver/Grey

• Composition
• Chromium, Manganese, Tungsten, Vanadium, Carbon

• Corrosion Resistant
• Moderate

• Diameter
• 10mm - 300mm (custom sizes available)

• Dimension (L*W*H)
• Custom lengths x Diameter (Round Bar Shape)

• Finish Type
• Bright, Hot Rolled, Black, or Peeled finish

• Grade
• OHNS (Oil Hardened Non-Shrinking)

• Hardness
• 57-62 HRC (after heat treatment)

• Heat Resistance
• Yes

• Material Composition %
• C: 0.90-1.00%, Mn: 1.00-1.20%, Cr: 0.40-0.60%, W: 0.40-0.50%, V: 0.15-0.30%

• Material Grade
• OHNS

• Product Form
• Solid Bar

• Product Name
• Other, OHNS Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom/Standard

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, AISI O1 / DIN 1.2510 / BS BO2

• Steel Type
• Other, Alloy Tool Steel

• Surface
• Bright/Forged/Polished

• Tensile Strength
• 700-850 MPa (approx.)

• Thickness
• Varies (as per diameter)

• Usage
• Industrial, Engineering, Tool Room

• Weight
• Varies as per size and length

• Application
• Other, Automotive components, bearings, tools, rollers, shafts, gears, and engineering parts requiring high strength and wear resistance.

• Coating Type
• Can be supplied with or without coating as required (Black, Oiled, or as specified).

• Color
• Silver Gray (metallic)

• Composition
• High carbon chromium steel alloyed with chromium.

• Corrosion Resistant
• Moderate resistance; may require additional coating for severe environments.

• Diameter
• Range from 16mm up to 150mm and above.

• Dimension (L*W*H)
• Customizable as per customer requirement.

• Finish Type
• Bright, Black, Peeled, Polished, or Ground

• Grade
• EN31

• Hardness
• 58-62 HRC (after heat treatment)

• Heat Resistance
• Yes

• Material Composition %
• Carbon: 0.90%-1.20%, Chromium: 1.00%-1.60%, Manganese: 0.30%-0.75%, Silicon: 0.10%-0.35%, Sulphur: Max 0.040%, Phosphorous: Max 0.040%

• Material Grade
• EN31

• Product Form
• Solid Bar

• Product Name
• Other, EN31 Steel Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Standard and custom sizes available.

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, BS 970, ASTM A322, IS 1570

• Steel Type
• Alloy Steel

• Surface
• Bright, Black, Peeled, Polished or Ground Finish

• Tensile Strength
• 850-1000 N/mm2

• Thickness
• Customer-specific, generally ranges from 16mm to 150mm and above.

• Usage
• Used for manufacturing bearings, automotive parts, tools, rollers, and other engineering applications.

• Weight
• Varies according to diameter and length.

• Application
• Other, Automotive, engineering, heavy machinery, shafts, gears, and axles

• Coating Type
• Uncoated/optional with anti-corrosion oil

• Color
• Metallic Grey

• Composition
• Chromium, Molybdenum, Carbon, Manganese, Silicon, Phosphorus, Sulfur

• Corrosion Resistant
• Moderate corrosion resistance with proper treatment

• Diameter
• 10mm to 300mm or as per customer requirement

• Dimension (L*W*H)
• Customizable, standard lengths available

• Finish Type
• Hot rolled, Cold drawn, Turned & Ground

• Grade
• EN 19

• Hardness
• 253-300 HB

• Heat Resistance
• Yes

• Material Composition %
• C: 0.35-0.45%, Si: 0.10-0.35%, Mn: 0.50-0.80%, Cr: 0.90-1.50%, Mo: 0.15-0.30%, P: 0.035%, S: 0.040%

• Material Grade
• EN 19

• Product Form
• Bar

• Product Name
• Other, EN 19 Alloy Steel Bar

• Recyclable
• Yes

• Shape
• Other, Round Bar

• Size
• Custom sizes available

• Steel Product Type
• Other, Steel Bar

• Steel Standard
• Other, BS 970-1955 EN19, ASTM A29, AISI 4140 equivalent

• Steel Type
• Alloy Steel

• Surface
• Bright, Black, Peeled, Polished

• Tensile Strength
• 850 - 1000 N/mm2

• Thickness
• As per requirement, typically 10mm and above

• Usage
• Manufacturing of gears, crankshafts, high strength machine parts

• Weight
• Variable depending on size and length

• Application
• Other, Automotive, Engineering, Aerospace Components, Shafts, Gears, Studs

• Coating Type
• None / As required (can be supplied with oil coating)

• Color
• Metallic Grey

• Composition
• Nickel Chromium Molybdenum Alloy Steel

• Corrosion Resistant
• Moderate (better than mild steel, not stainless)

• Diameter
• 20mm to 300mm or as per requirement

• Dimension (L*W*H)
• Custom/Limited by manufacturer specification or requirement

• Finish Type
• Bright Drawn / Black / Peeled As per requirement

• Grade
• EN24

• Hardness
• 248-302 HB (Supplied Condition), Up to 50 HRC (after hardening)

• Heat Resistance
• Yes

• Material Composition %
• Carbon 0.35-0.45%, Silicon 0.10-0.35%, Manganese 0.45-0.70%, Chromium 0.90-1.40%, Molybdenum 0.20-0.35%, Nickel 1.30-1.80%

• Material Grade
• EN24 / 817M40

• Product Form
• Bar

• Product Name
• Other, EN24 Alloy Steel Bar

• Recyclable
• Yes

• Shape
• Other, Round / Bar

• Size
• Custom sizes available

• Steel Product Type
• Other, Round Bar / Bright Bar / Forged Bar

• Steel Standard
• Other, BS 970-1955 (EN24), ASTM A322, equivalent standards

• Steel Type
• Alloy Steel

• Surface
• Bright / Black

• Tensile Strength
• 850-1000 N/mm2 (Depending on condition)

• Thickness
• Varies (commonly from 20mm up to 300mm and above)

• Usage
• Manufacture of engineering components, shafts, automotive and machinery parts

• Weight
• Depends on size and length (typically supplied as per requirement)

• Application
• Other, Construction, Automobile, Aerospace, Oil & Gas, Engineering Components

• Coating Type
• Uncoated / on request

• Color
• Silver / Grey

• Composition
• Chromium-Molybdenum Alloy Steel

• Corrosion Resistant
• Moderate

• Diameter
• 10 mm to 300 mm

• Dimension (L*W*H)
• As per requirement

• Finish Type
• Bright, Peeled, Polished

• Grade
• SAE 4130

• Hardness
• Hardness 217 HB max

• Heat Resistance
• Yes

• Material Composition %
• Cr 0.80-1.10%, Mo 0.15-0.25%, C 0.28-0.33%, Mn 0.40-0.60%, Si 0.15-0.35%, Fe Balance

• Material Grade
• 4130

• Product Form
• Bar

• Product Name

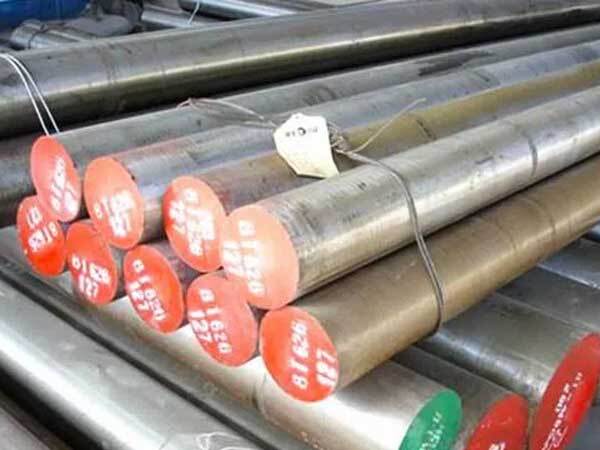

• Other, SAE 4130 Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Cut lengths & full bars available

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM A29/A29M

• Steel Type
• Alloy Steel

• Surface
• Polished, Bright, Black

• Tensile Strength
• 560-700 MPa

• Thickness
• As per customer demand

• Usage
• Fittings, Shafts, Gears, Tools, Structural applications

• Weight
• Customizable

• Application
• Other, Automobile, Machinery, Construction, Shafts, Gears, Bolts, Tools

• Coating Type
• Uncoated, Custom coating available upon request

• Color
• Natural Steel Grey

• Composition
• Chromium-Molybdenum Alloy Steel

• Corrosion Resistant
• Moderate; requires surface protection for extended exposure

• Diameter
• 10mm to 350mm (or as per requirement)

• Dimension (L*W*H)
• Customized, Standard lengths (e.g., 3m, 6m)

• Finish Type
• Bright, Hot Rolled, Forged, Annealed

• Grade
• SAE-4140

• Hardness
• 28 - 32 HRC (annealed), up to 50 HRC (hardened)

• Heat Resistance
• Yes

• Material Composition %
• C: 0.38-0.43%, Mn: 0.75-1.00%, Si: 0.15-0.35%, Cr: 0.80-1.10%, Mo: 0.15-0.25%, P 0.035%, S 0.04%

• Material Grade
• 4140

• Product Form
• Bar

• Product Name
• Other, SAE-4140 Steel Bar

• Recyclable
• Yes

• Shape
• Other, Round (also available: Flat, Square)

• Size
• Custom/Standard sizes available

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM A29, JIS G4105, DIN 42CrMo4, BS EN19

• Steel Type
• Alloy Steel

• Surface
• Bright, Black, Peeled, Turned, Polished

• Tensile Strength
• 850 - 1000 MPa (depending on heat treatment)

• Thickness
• Custom/As required

• Usage
• Engineering Components, Forgings, Heavy-duty Shafts

• Weight
• Variable as per dimension
